Fourier Intuition: Images as Sums of Waves

"People say I'm just a wave. But shift me half a cycle and the whole picture falls apart. Phase is character."

A Slightly Out-of-Phase Sinusoid

In Chapter 3 you processed images in the domain they arrive in: a grid of intensities indexed by position. That viewpoint is natural but it hides structure. A striped shirt and a plain wall look completely different as pixel arrays, yet the shirt is, in a precise sense, mostly one number: the frequency of its stripes. This section introduces the second great coordinate system of image processing, where the axes are not "where" but "how fast things change". Everything else in this chapter, filtering, aliasing, pyramids, and wavelets, is built on the intuition assembled here.

1. What "Frequency" Means in an Image Beginner

Start with sound, where frequency is familiar. A microphone records air pressure as a function of time, and Fourier's claim is that any such recording is a sum of pure tones: sine waves of different frequencies, loudnesses, and starting offsets. A bass note contributes a slow wave, a cymbal contributes fast ones. The recording and its list of tones are interchangeable descriptions.

An image is the same story with two changes. First, the signal varies over space rather than time, so we speak of spatial frequency: how rapidly intensity changes as you move across the image, measured in cycles per pixel or cycles per image width. Second, space is two-dimensional, so each elementary wave needs a direction as well as a rate. A wave can undulate left-to-right, top-to-bottom, or at any angle in between. Slowly varying illumination, like the soft gradient across a clear sky, is low frequency. A picket fence, a houndstooth jacket, or the sensor noise from Chapter 1 is high frequency. Most natural images are dominated by low frequencies, with energy falling off steeply as frequency rises; this single statistical fact will explain JPEG's success later in the chapter.

2. The 2D Sinusoid: Frequency, Orientation, Amplitude, Phase Beginner

The atom of the frequency domain is the two-dimensional sinusoidal grating:

$$s(x, y) = A \cos\!\big(2\pi (u_0 x + v_0 y) + \phi\big)$$

Four numbers define it completely. The pair $(u_0, v_0)$ sets both how fast the wave oscillates and in which direction: the stripes run perpendicular to the vector $(u_0, v_0)$, and the number of cycles you cross per unit distance is $\sqrt{u_0^2 + v_0^2}$. The amplitude $A$ sets the contrast between crests and troughs. The phase $\phi$ slides the whole pattern along its direction of travel without changing its look. Generating a few gratings makes this concrete:

import numpy as np
import matplotlib.pyplot as plt

H, W = 256, 256
yy, xx = np.mgrid[0:H, 0:W]            # row (y) and column (x) coordinates

def grating(u, v, phase=0.0, amplitude=1.0):
    """2D sinusoid with u cycles across the width and v cycles down the height."""
    return amplitude * np.cos(2 * np.pi * (u * xx / W + v * yy / H) + phase)

fig, axes = plt.subplots(1, 4, figsize=(12, 3))
for ax, (u, v) in zip(axes, [(4, 0), (16, 0), (0, 8), (10, 10)]):
    ax.imshow(grating(u, v), cmap="gray")
    ax.set_title(f"u={u}, v={v}")
    ax.axis("off")
plt.tight_layout()
plt.show()

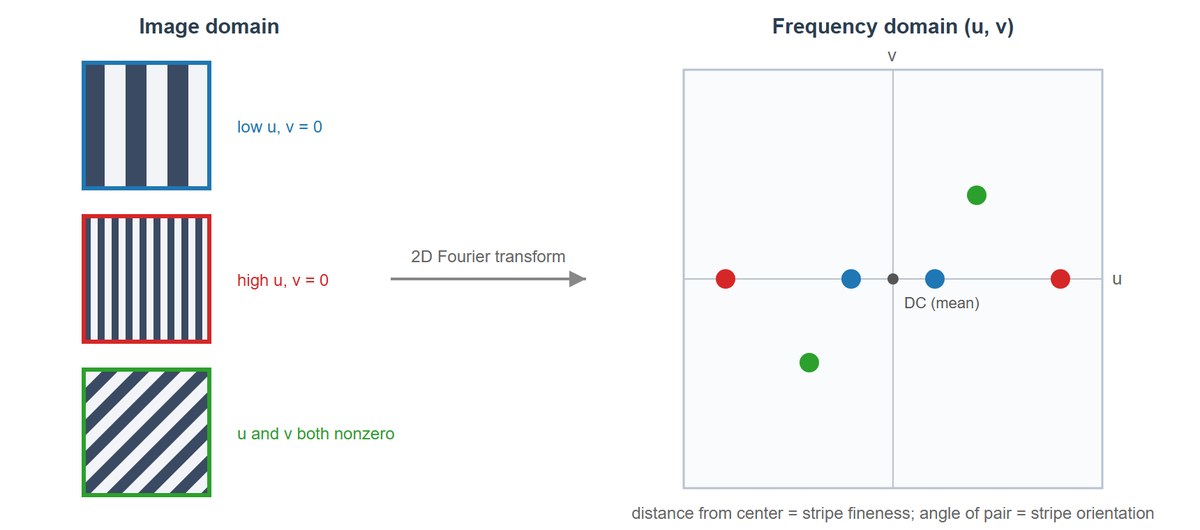

Each grating you just generated corresponds to exactly one pair of points in the frequency plane (one point at $(u_0, v_0)$ and its mirror at $(-u_0, -v_0)$, a symmetry explained in Section 4.2). Figure 4.1.1 shows the mapping: coarse stripes sit near the center of the frequency plane, fine stripes far from it, and the angle of the dot pair matches the orientation of the stripes. Learning to move mentally between the two panels of this figure is the core skill of the section.

3. Building Images Out of Waves Beginner

Decomposition only feels real once you run it in reverse. Can smooth, wavy ingredients really add up to something hard-edged? The classic demonstration is the square wave: a vertical black-and-white bar pattern with razor-sharp transitions. Fourier analysis says it equals an infinite sum of odd harmonics with amplitudes falling as $1/k$:

$$\mathrm{sq}(t) = \frac{4}{\pi} \sum_{k=1,3,5,\dots} \frac{\sin(2\pi k t)}{k}$$

The code below truncates this sum at increasing numbers of terms and renders each truncation as an image, so you can watch edges sharpen as high frequencies join the choir:

n_terms = [1, 3, 11, 101]              # how many odd harmonics to keep
t = xx / W                             # horizontal coordinate in [0, 1)

fig, axes = plt.subplots(1, len(n_terms), figsize=(12, 3))
for ax, n in zip(axes, n_terms):
    wave = np.zeros_like(t, dtype=np.float64)
    for k in range(1, 2 * n, 2):       # k = 1, 3, 5, ... (n odd harmonics)
        wave += (4 / (np.pi * k)) * np.sin(2 * np.pi * 4 * k * t)
    ax.imshow(wave, cmap="gray", vmin=-1.3, vmax=1.3)
    ax.set_title(f"{n} harmonic(s)")
    ax.axis("off")
plt.tight_layout()
plt.show()

Two lessons hide in this output. First, sharp edges are expensive: they require contributions from arbitrarily high frequencies, which is why blurring (removing high frequencies) always softens edges, as you saw operationally with the Gaussian kernels of Chapter 3. Second, the stubborn ripple that clings to each edge no matter how many terms you add is the Gibbs phenomenon, an overshoot of about 9 percent that merely squeezes closer to the edge as frequencies are added. It will return in Section 4.3 as the "ringing" artifact of ideal low-pass filters, and you will know exactly whom to blame.

4. Amplitude and Phase: Who Carries the Picture? Intermediate

Each frequency component of a real image carries two numbers, conveniently packed into one complex value $F(u, v) = |F(u, v)|\, e^{j \angle F(u, v)}$. The magnitude $|F(u,v)|$ says how strongly that wave is present; the phase $\angle F(u,v)$ says where its crests sit. A natural guess is that amplitude, the "how much", matters most. The most instructive experiment in classical image processing says otherwise. Take two unrelated photographs, compute both spectra, and recombine them crosswise: the amplitude of one with the phase of the other.

import numpy as np
from skimage import data
from skimage.color import rgb2gray

img_a = rgb2gray(data.astronaut())                 # 512 x 512, floats in [0, 1]
img_b = data.camera().astype(np.float64) / 255.0   # 512 x 512

FA, FB = np.fft.fft2(img_a), np.fft.fft2(img_b)
amp_a, phase_a = np.abs(FA), np.angle(FA)
amp_b, phase_b = np.abs(FB), np.angle(FB)

# Marry the amplitude of one image to the phase of the other
hybrid_1 = np.real(np.fft.ifft2(amp_a * np.exp(1j * phase_b)))
hybrid_2 = np.real(np.fft.ifft2(amp_b * np.exp(1j * phase_a)))

# hybrid_1 is recognizably the cameraman; hybrid_2 is recognizably
# the astronaut. Phase, not amplitude, decides what you see.

The result is unambiguous: each hybrid resembles the image that contributed its phase. Amplitude tells you an image's statistical texture, how much energy lives at each frequency and orientation, but phase encodes where edges align, and aligned edges are what your visual system reads as objects. This is not just a parlor trick. It explains why amplitude-only descriptors are weak at recognition, and it powers practical methods: Fourier domain adaptation (FDA, CVPR 2020) makes synthetic training images look like real-camera images by swapping low-frequency amplitude between domains while preserving each image's own phase, and therefore its content.

5. Reading a Spectrum Like a Map Intermediate

Once you can generate spectra (the full recipe, with shifting and log scaling, comes in Section 4.2), a few reading rules cover most of what you will ever see. The bright center is the DC component and the low frequencies: overall brightness and large smooth regions. Energy spreads outward as the image gains fine detail. A strong oriented edge in the image produces a streak through the spectrum's center perpendicular to the edge, because an edge is locally a half-built square wave needing many collinear harmonics. A repeating pattern, like fabric weave or a printed halftone, produces isolated bright dots at the pattern's frequency and its harmonics. Noise sprinkles energy roughly uniformly everywhere, which is why the denoising filters of Chapter 7 are, at heart, attempts to keep the signal's spectrum while discarding the noise's.

It is worth knowing what the transform looks like computed naively, if only to appreciate what the library call replaces. A direct implementation of the 2D discrete Fourier transform is four nested loops: for every output frequency $(u, v)$, sum over every pixel $(x, y)$ a term $f(x,y)\,e^{-j2\pi(ux/M + vy/N)}$. At $512 \times 512$ that is $512^4 \approx 6.9 \times 10^{10}$ complex multiply-adds, hours of pure Python. The library equivalent is one line.

F = np.fft.fft2(img)        # full complex spectrum in one call
mag, phase = np.abs(F), np.angle(F)
