Motion Fields & the Brightness Constancy Assumption

"I promise I am the same pixel you saw a thirtieth of a second ago. I have merely relocated. Please stop asking for identification."

An Optimistically Constant Pixel

This chapter opens a new kind of input. Until now the book has processed single images; Chapter 14 used several, but each was a deliberate, well-separated viewpoint. Video is different: a dense stream of frames, typically 30 per second, in which almost nothing changes between consecutive samples. That redundancy is the opportunity. Because frames are so close in time, the change between them is small enough to treat with calculus, and calculus is exactly what this section applies.

1. From Images to Image Sequences Beginner

Notation first. A grayscale video is a function of three variables, $I(x, y, t)$: intensity at pixel $(x, y)$ at time $t$. A single frame is a slice at constant $t$. Everything in Chapter 3 about spatial derivatives $I_x = \partial I / \partial x$ and $I_y = \partial I / \partial y$ carries over unchanged; the new object is the temporal derivative $I_t = \partial I / \partial t$, estimated in the simplest case by subtracting one frame from the next. With three derivatives in hand, we can ask the question that defines this chapter: how is the brightness at one moment related to the brightness a moment later?

The geometric answer is called the motion field. Every visible 3D point in the scene has some velocity relative to the camera (because it moves, or the camera moves, or both). Project each such velocity through the camera model of Chapter 12 and you get a 2D vector at every pixel: the true image-plane displacement of the world. The motion field is what a physicist would want to measure. Unfortunately, no sensor measures it. The camera records brightness, and brightness is only loosely attached to geometry.

What we can hope to estimate from pixels is optical flow: the apparent motion of brightness patterns. Define it operationally as the vector field $(u(x,y), v(x,y))$ that warps frame $t$ into frame $t+1$ as well as possible. In friendly conditions (matte surfaces, steady lighting, textured scenes) optical flow and the motion field agree, and flow is a perfectly good measurement of motion. The interesting failures happen when they part ways.

2. When Flow and Motion Disagree Beginner

Two classic thought experiments calibrate your intuition. First, a perfectly smooth matte sphere rotating in place under fixed lighting: the motion field is large (every surface point sweeps sideways), yet the image does not change at all, because the sphere's shading depends only on geometry that is rotationally symmetric. Motion field large, optical flow zero. Second, the same sphere held still while a light source orbits it: now no point moves, but the shading sweeps across the surface and the image changes everywhere. Motion field zero, optical flow large. The barber pole illusion is the everyday version: the helical stripes physically rotate about a vertical axis (horizontal motion), but the flow you perceive, and that any algorithm estimates, runs vertically along the pole. Figure 15.1.1 sketches both sphere cases side by side.

The practical reading of Figure 15.1.1 is not "flow is broken" but "flow measures brightness transport, and you must know when brightness transport equals motion." On textured, diffusely lit surfaces it does. On specular highlights, shadows, smoke, and screens it does not, and a system that feeds flow into downstream logic (a tracker, a SLAM front end like Chapter 14's, a video generator) inherits those mismatches as input errors.

3. Brightness Constancy and the Constraint Equation Intermediate

To estimate flow we need an equation linking what we observe (derivatives of $I$) to what we want (the vector $(u, v)$). The link is the brightness constancy assumption: a small surface patch keeps its brightness as it moves. Formally, if the patch at $(x, y)$ at time $t$ moves by $(u, v)$ in one frame interval,

$$ I(x + u,\; y + v,\; t + 1) \;=\; I(x, y, t). $$

This is an assumption, not a law: it holds for Lambertian surfaces under constant illumination and fails for everything Figure 15.1.1 warned about. Accept it provisionally and apply a first-order Taylor expansion, legitimate because consecutive video frames differ by a pixel or two at most:

$$ I(x+u, y+v, t+1) \;\approx\; I(x,y,t) + I_x u + I_y v + I_t . $$

Setting the two sides equal cancels $I(x,y,t)$ and leaves the optical flow constraint equation (OFCE), the single most important formula in this chapter:

$$ I_x u + I_y v + I_t = 0, \qquad \text{equivalently} \qquad \nabla I \cdot \mathbf{v} = -I_t . $$

Pause on what this says. At every pixel, the three measurable derivatives constrain the two unknown flow components. But it is one linear equation in two unknowns: its solution set is not a point but a line in $(u, v)$ velocity space, perpendicular to the image gradient. Any flow vector on that line explains the observed brightness change equally well. The component of flow along the gradient (across the local edge) is pinned down; the component perpendicular to the gradient (along the edge) is invisible. Figure 15.1.2 draws this constraint line, and the next subsection gives the geometry its famous name.

4. The Aperture Problem Intermediate

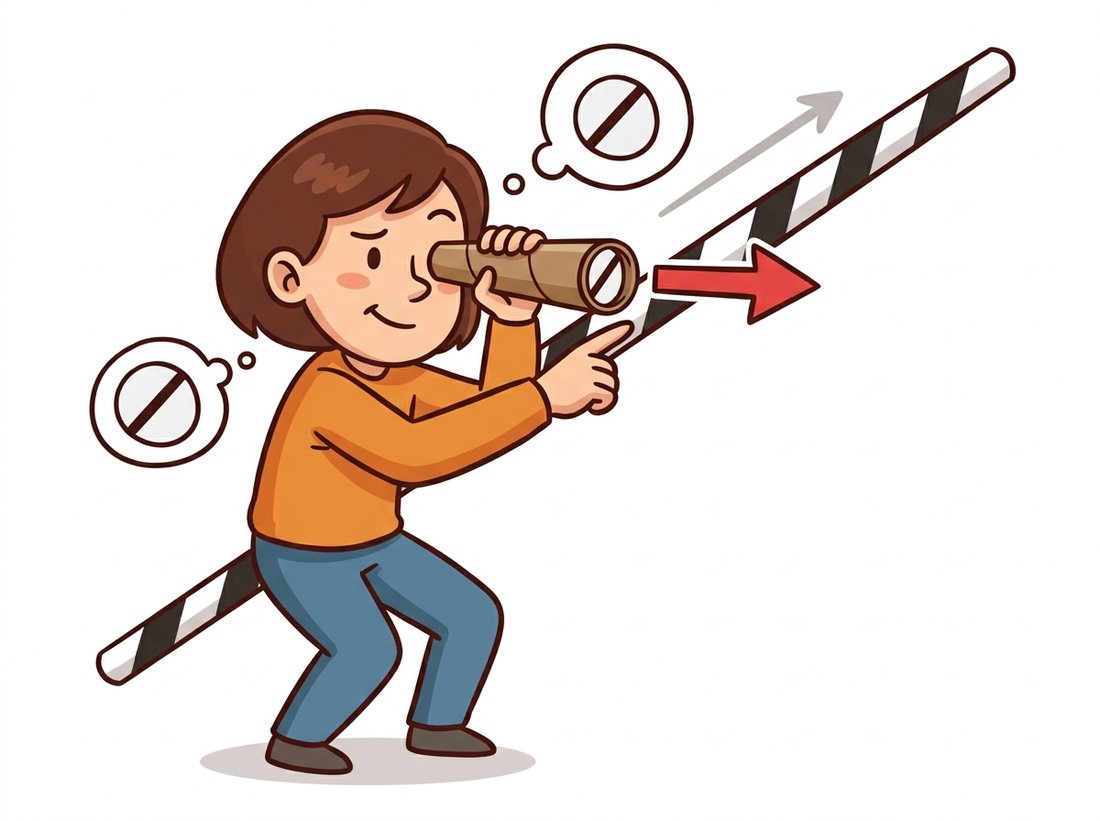

The underdetermination in Figure 15.1.2 is called the aperture problem: viewed through a small window (and a derivative is the smallest window there is), a moving edge only reveals its motion across itself. The vector the data does pin down is the normal flow,

$$ \mathbf{v}_\perp \;=\; -\,\frac{I_t}{\lVert \nabla I \rVert}\,\frac{\nabla I}{\lVert \nabla I \rVert}, $$

the projection of the true flow onto the gradient direction. Where the gradient vanishes (flat regions), even that is gone: $0 \cdot u + 0 \cdot v = -I_t$ constrains nothing. So the local information budget has three tiers, and you have met them before. Flat regions say nothing about motion. Edges (one strong gradient direction) determine one component, exactly like the line structures of Chapter 9. Corners and textured patches (two strong gradient directions) determine motion fully, which is precisely why Chapter 10 found corners to be the matchable points. The next section makes this correspondence exact: the matrix that decides trackability is the same structure tensor that decided cornerness.

5. Measuring the Derivatives Beginner

The OFCE is built from three derivative images, and estimating them well matters more than beginners expect. The spatial derivatives $I_x, I_y$ come from the derivative filters of Chapter 3 (Sobel or the smaller central-difference kernels). The temporal derivative $I_t$ is a difference between frames, ideally computed after slight smoothing so that noise does not masquerade as motion. The code below computes all three from a pair of frames and then forms the normal flow magnitude, the part of motion that local data actually determines.

import cv2
import numpy as np

f0 = cv2.imread("frame_000.png", cv2.IMREAD_GRAYSCALE).astype(np.float32) / 255
f1 = cv2.imread("frame_001.png", cv2.IMREAD_GRAYSCALE).astype(np.float32) / 255

# Mild blur first: derivatives amplify noise (Chapter 3's standard caution)
f0s = cv2.GaussianBlur(f0, (5, 5), 1.0)
f1s = cv2.GaussianBlur(f1, (5, 5), 1.0)

Ix = cv2.Sobel(f0s, cv2.CV_32F, 1, 0, ksize=3) / 8.0   # /8 normalizes Sobel
Iy = cv2.Sobel(f0s, cv2.CV_32F, 0, 1, ksize=3) / 8.0
It = f1s - f0s                                          # forward difference in time

grad_mag = np.sqrt(Ix**2 + Iy**2)
normal_flow = np.where(grad_mag > 1e-3, -It / (grad_mag + 1e-8), 0.0)

print(f"|It| mean: {np.abs(It).mean():.4f}")
print(f"normal flow range: {normal_flow.min():.2f} .. {normal_flow.max():.2f} px")
# Typical output for a slow traffic clip:
# |It| mean: 0.0061
# normal flow range: -2.31 .. 2.18 px

Run this on any video pair and inspect normal_flow: it is large on moving edges, zero in flat sky and road, and ambiguous along structures aligned with their own motion. That image is the honest raw material of motion estimation; everything after it is inference. To see what a full estimator produces from the same two frames, the library shortcut below jumps ahead to a dense algorithm that Section 15.3 will open up properly.

flow = cv2.calcOpticalFlowFarneback(
    (f0 * 255).astype(np.uint8), (f1 * 255).astype(np.uint8), None,
    pyr_scale=0.5, levels=3, winsize=15, iterations=3,
    poly_n=5, poly_sigma=1.2, flags=0)
u, v = flow[..., 0], flow[..., 1]      # full flow, not just the normal part

6. When Brightness Constancy Breaks Intermediate

Brightness constancy fails in well-catalogued ways, and recognizing the catalogue saves debugging weeks. Global illumination changes: auto-exposure, auto-white-balance, clouds; the entire OFCE is violated at once because $I_t$ is nonzero everywhere with no motion at all. Specularities and shadows: brightness moves independently of surfaces, as in Figure 15.1.1. Occlusions: at object boundaries, pixels appear and disappear; no displacement explains them, so the Taylor story collapses there. Large motion: the first-order expansion assumed sub-pixel displacement; a car moving 40 pixels per frame makes the linearization meaningless, a failure called temporal aliasing that pyramids will repair in Section 15.2.

Classical remedies exist for each. Gradient constancy ($\nabla I$ preserved instead of $I$) survives additive illumination shifts. The census transform, which encodes each pixel by the sign pattern of its neighborhood, survives any monotonic brightness change and became the default data term in robust pipelines. Pre-smoothing and pyramids handle aliasing. None of these is exotic: they are all instances of the same move, replacing raw brightness with a representation more faithful to geometry, a thread that runs from Chapter 2's normalization tricks all the way to learned features.
