Contrastive Learning: SimCLR & MoCo

"Show me the same dog cropped, recolored, and flipped, and I will swear it is the same dog. Show me a different dog, and I will fight you on it. This is the entire personality I was trained to have, and it turns out to be most of what intelligence looks like."

A Contrastive Encoder With Strong Opinions About Sameness

The pretext tasks of Section 25.1 each encoded one specific assumption about images (orientation, spatial layout, color semantics) and learned only what that assumption exposed. Contrastive learning generalizes the idea into a single objective that subsumes them: instead of predicting a chosen transformation, predict which images are the same under transformation. The goal, as throughout the chapter, is the learned descriptor itself, the data-driven successor to the hand-crafted SIFT and ORB vectors of Chapter 10. We will define the notion of a positive pair and negative pairs, write down the InfoNCE loss, implement SimCLR end to end on the ResNet backbones of Chapter 20, and then dissect MoCo's two engineering ideas that made contrastive learning practical without a supercomputer. The features this produces are the ones the linear probe of Section 25.1 finally rewards, and they set up the negative-free methods of Section 25.3.

1. Positives, Negatives, and the InfoNCE Loss Intermediate

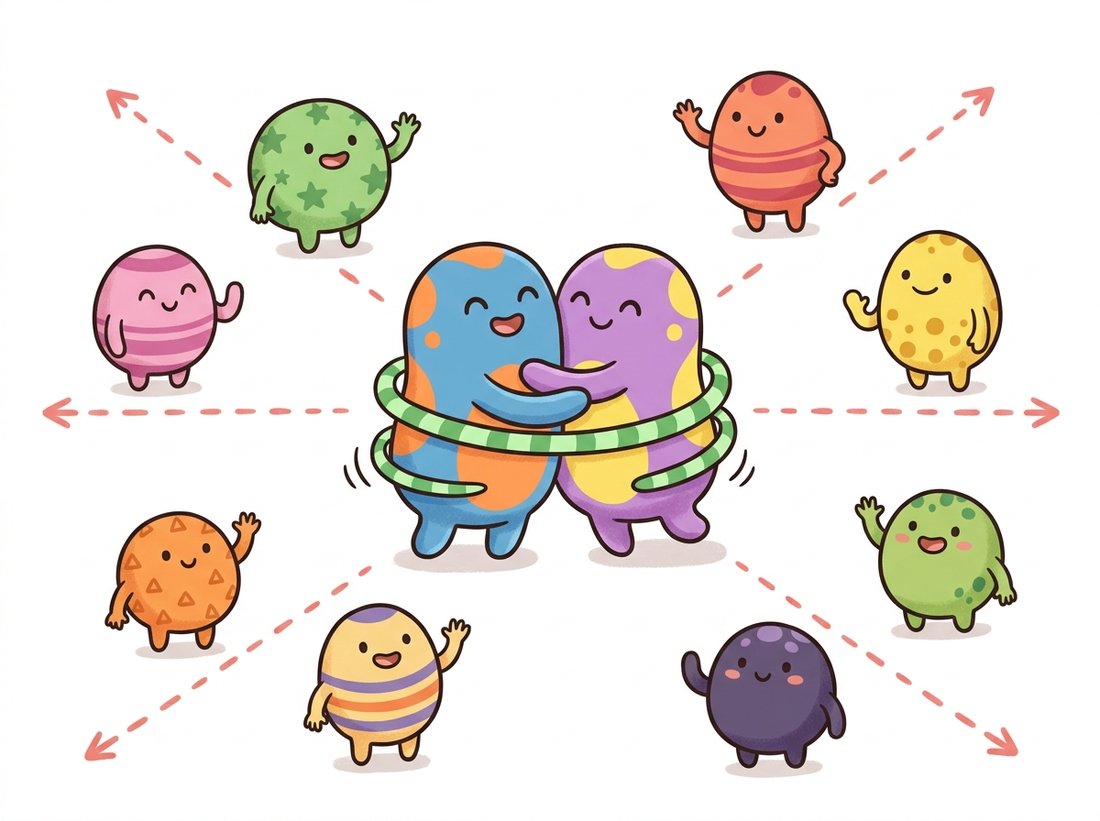

Start with one image $x$. Apply two independent random augmentations to it, producing two views $\tilde{x}_a$ and $\tilde{x}_b$. These form a positive pair: they show the same content, so their representations should be close. Every other image in the batch, under any augmentation, is a negative for this pair: different content, so its representation should be far away. The network's job is to pull the positive pair together and push the negatives apart, in a learned feature space. The illustration below gives the intuition as a magnet-and-spring dance floor, and Figure 25.2.1 shows the two-branch structure that produces these embeddings.

The loss that implements pull-together-push-apart is InfoNCE (also called NT-Xent in SimCLR). For a positive pair $(z_i, z_j)$ with cosine similarity $\text{sim}(u, v) = u^\top v / (\|u\|\|v\|)$ and temperature $\tau$, the loss for view $i$ is

Read this as a classification problem with $2N - 1$ candidates: among all the other embeddings in the batch, which one is the true partner of $z_i$? The condition $k \neq i$ excludes only $z_i$ comparing to itself, so the denominator sums over the positive partner $z_j$ together with every negative. That is why the numerator's term reappears inside the denominator. Minimizing the loss maximizes the positive similarity relative to the negatives. The temperature $\tau$ (typically around $0.1$) sharpens the softmax: small $\tau$ makes the model focus on the hardest negatives, the ones already close to the positive. This is the same softmax-over-similarities structure that will reappear, almost unchanged, as the CLIP objective in Section 25.4.

2. SimCLR: Augmentation Is the Architecture Intermediate

SimCLR (Chen et al., 2020) is the cleanest contrastive framework: a shared encoder, a small projection head (a two-layer multilayer perceptron, or MLP, that maps features to the space where the loss is computed and is discarded afterward), and the InfoNCE loss over a large batch. Its most important and most surprising finding is that the composition of data augmentations is the real design decision. The single most valuable augmentation pair is random cropping combined with random color distortion. Cropping alone lets the network cheat by matching color histograms between the two views; color distortion alone lets it cheat by matching spatial layout. Only together do they force the network onto content. The augmentation pipeline you learned in Chapter 21 is here promoted from a regularizer to the heart of the method.

The code below implements the SimCLR loss for a batch of $2N$ embeddings (two views per image, stacked). It builds the full similarity matrix, masks out self-comparisons, and applies cross-entropy with the positive partner as the target.

import torch
import torch.nn.functional as F

def simclr_loss(z, temperature=0.1):
    """z: (2N, d) = N images x 2 views, stacked as [view_a(0..N-1), view_b(0..N-1)]."""
    N2 = z.size(0)
    N = N2 // 2
    z = F.normalize(z, dim=1)                        # cosine sim = dot product of unit vectors
    sim = z @ z.t() / temperature                    # (2N, 2N) all pairwise similarities
    sim.fill_diagonal_(float("-inf"))                # an embedding is not its own negative

    # The positive of row i is its other view: i<->i+N (and i+N<->i).
    targets = torch.arange(N2, device=z.device)
    targets = (targets + N) % N2                     # partner index for every row
    return F.cross_entropy(sim, targets)             # InfoNCE = cross-entropy over candidates

torch.manual_seed(0)
z = torch.randn(8, 128)                              # 4 images x 2 views, 128-d embeddings
print("SimCLR loss:", round(simclr_loss(z).item(), 4))
# SimCLR loss: 2.0794   (near log(2N-1)=log7 for random embeddings, as expected)

This is correct but expensive in one specific way: the similarity matrix is $2N \times 2N$, and the quality depends on $N$ being large. SimCLR's published results used batch sizes up to 4096, which requires many accelerators working in concert simply to hold one step in memory. That hardware requirement is precisely the problem MoCo solves.

3. MoCo: A Momentum Encoder and a Queue Advanced

MoCo (He et al., 2020) reframes contrastive learning as building a dictionary lookup. One view (the query) is encoded by the main encoder; the other views and many past images (the keys) live in a dictionary, and the query must match its positive key against all the others. The insight is that the dictionary of keys does not need to come from the current batch. If we keep a queue of key embeddings from recent batches, we get tens of thousands of negatives while the batch stays small enough for a single machine. MoCo decouples the number of negatives from the batch size, the constraint that made SimCLR so hardware-hungry.

This raises a problem: if the encoder's weights change every step, then keys computed several batches ago were produced by a stale, inconsistent encoder, and comparing them to a fresh query is meaningless. MoCo's fix is the momentum encoder: a second copy of the encoder whose weights $\theta_k$ are not trained by gradient descent but are updated as a slow exponential moving average of the query encoder's weights $\theta_q$,

With $m$ close to one, the key encoder evolves slowly and smoothly, so keys produced batches apart remain mutually consistent, yet it still tracks the improving query encoder. Figure 25.2.2 contrasts the two designs side by side.

The momentum update and queue are short to express in code. Note that the key encoder receives no gradients; it is updated only by the moving average.

import torch
import torch.nn.functional as F

@torch.no_grad()
def momentum_update(query_enc, key_enc, m=0.999):
    """Key encoder = slow EMA of the query encoder. No gradients flow here."""
    for q_param, k_param in zip(query_enc.parameters(), key_enc.parameters()):
        k_param.data.mul_(m).add_(q_param.data, alpha=1 - m)   # k <- m*k + (1-m)*q

def moco_loss(q, k, queue, temperature=0.07):
    """q, k: (N, d) query and positive-key embeddings; queue: (K, d) negative keys."""
    q, k = F.normalize(q, dim=1), F.normalize(k, dim=1)   # L2-normalize for cosine sim
    queue = F.normalize(queue, dim=1)
    l_pos = (q * k).sum(1, keepdim=True)            # (N, 1) positive similarity per query
    l_neg = q @ queue.t()                           # (N, K) similarity to every queued key
    logits = torch.cat([l_pos, l_neg], dim=1) / temperature   # positive is column 0
    targets = torch.zeros(q.size(0), dtype=torch.long, device=q.device)
    return F.cross_entropy(logits, targets)         # classify the positive against K negatives

q = torch.randn(4, 128); k = torch.randn(4, 128); queue = torch.randn(4096, 128)
print("MoCo loss:", round(moco_loss(q, k, queue).item(), 4))
# MoCo loss: 8.3...  (near log(4097) for random embeddings: many negatives, harder task)

After each step the current batch's keys are enqueued and the oldest keys dequeued, keeping a rolling window of recent, mutually-consistent negatives. MoCo v2 later adopted SimCLR's MLP projection head and stronger augmentation, and the two lines of work effectively merged. The practical lesson, though, is durable, and worth memorizing as a one-line mental model: contrastive learning needs negatives, not a giant batch; a queue buys negatives when you cannot buy GPUs.

# Assemble a full MoCo step from prebuilt parts: the validated augmentation,
# the InfoNCE loss, and the memory-bank queue that holds the negatives.
from lightly.loss import NTXentLoss
from lightly.transforms import MoCoV2Transform
# The crop+color-jitter+blur augmentation SimCLR identified, prebuilt:
transform = MoCoV2Transform(input_size=224)
criterion = NTXentLoss(temperature=0.1, memory_bank_size=(65536, 128))  # queue built in
# loss = criterion(query_embeddings, key_embeddings)

4. The Formal Objectives: NT-Xent and InfoNCE Written Out Advanced

Sections 1 through 3 built the intuition and the working code, but a graduate reader needs the objectives stated in the exact form the original papers optimize, because the bookkeeping (which indices are summed, what counts as a negative, how positive pairs are averaged) is where contrastive methods quietly differ from one another. This subsection writes both losses out fully, names every term, and connects the temperature and the indicator to the geometry they control. The notation matches Chen et al. (2020) for SimCLR and He et al. (2020) for MoCo so the formulas below can be read directly against the papers.

4.1 SimCLR's NT-Xent, Indexed Over the Full Batch

SimCLR draws a minibatch of $N$ images and applies two independent augmentations to each, producing $2N$ views. Let $z_k$ be the L2-normalized projection-head output for view $k$, and let $\text{sim}(u,v) = u^\top v / (\|u\|\,\|v\|)$ be cosine similarity. For a positive pair $(i,j)$, meaning $i$ and $j$ are the two augmentations of one image, the per-pair loss is

The indicator $\mathbb{1}_{[k \neq i]}$ excludes exactly one term from the denominator: the comparison of $z_i$ with itself. It does not exclude the positive partner $z_j$. This is the single subtle point of the formula. The denominator runs over all $2N - 1$ other views, which is the positive $z_j$ plus the $2N - 2$ negatives (the other $N-1$ images, each in two views). Dropping the self-term $k=i$ is mandatory because $\text{sim}(z_i, z_i)/\tau = 1/\tau$ is large and constant, and leaving it in would let the model satisfy the objective by matching itself, which carries no learning signal. Keeping $z_j$ in the denominator is what makes the expression a genuine softmax classification: the numerator is one entry of the denominator, so $\ell_{i,j}$ is the negative log-probability assigned to the correct partner among all $2N-1$ candidates.

The full NT-Xent loss (normalized temperature-scaled cross-entropy) is the average of $\ell_{i,j}$ over all positive pairs, counting both directions, because $\ell_{i,j} \neq \ell_{j,i}$ in general (each fixes a different anchor and therefore a different denominator):

where the pair $(2k-1, 2k)$ indexes the two views of the $k$-th image. The two directions $\ell_{i,j}$ and $\ell_{j,i}$ are both included, giving $2N$ positive-pair terms over $N$ images, hence the $1/2N$ normalization. This is exactly what the F.cross_entropy(sim, targets) call in Code Fragment 1 computes: cross-entropy over a row already averages over all $2N$ rows, and the (targets + N) % N2 mapping supplies each row's positive partner in the other direction automatically.

4.2 MoCo's InfoNCE Over a Queue

MoCo (He et al., 2020) writes the same softmax but reorganizes which embeddings supply the positive and the negatives. A query $q$ has exactly one positive key $k_+$ (the matching view of the same image, encoded by the momentum encoder) and a queue of $K$ negative keys $\{k_0, k_1, \ldots, k_K\}$ accumulated from previous batches. With dot-product similarity on normalized embeddings and temperature $\tau$, the InfoNCE loss for the query is

where the sum in the denominator runs over the positive $k_+$ together with all $K$ queued negatives (in MoCo's indexing $k_0$ denotes the positive, so the $K+1$ denominator terms are one positive plus $K$ negatives). This is a $(K+1)$-way softmax classification: identify the positive key among $K+1$ candidates. The structural difference from NT-Xent is only the source of the candidates. SimCLR's denominator is the current batch, which couples the number of negatives to batch size; MoCo's denominator is a FIFO queue, which decouples the number of negatives ($K$, often $65{,}536$) from the batch size entirely. The query encoder is updated by SGD on $\mathcal{L}_q$, while the key (momentum) encoder is never differentiated and instead tracks the query encoder by the exponential moving average of Section 3,

The large $m$ is what makes the queue valid: keys enqueued many steps ago were produced by a key encoder that has barely moved since, so comparing a fresh query against old keys is meaningful. The FIFO queue then buys a large, consistent negative set without a large batch, which is the entire engineering payoff of MoCo over SimCLR.

The PyTorch block below implements the NT-Xent numerator-and-denominator bookkeeping explicitly, rather than relying on F.cross_entropy as Code Fragment 1 did, so the correspondence to $\ell_{i,j}$ is line for line. It is the same loss, written to expose every term of the formula.

import torch
import torch.nn.functional as F

def nt_xent(z, temperature=0.1):
    """z: (2N, d), stacked as [view_a(0..N-1), view_b(0..N-1)]. Returns NT-Xent loss."""
    N2 = z.size(0)
    N = N2 // 2
    z = F.normalize(z, dim=1)                         # unit vectors -> dot = cosine sim
    sim = (z @ z.t()) / temperature                  # (2N, 2N): S_ik = sim(z_i, z_k)/tau

    # Denominator: sum over k != i  (exclude only the self-term, keep the positive).
    self_mask = torch.eye(N2, dtype=torch.bool, device=z.device)
    sim = sim.masked_fill(self_mask, float("-inf"))  # 1_{k != i}: drop k = i only
    log_denom = torch.logsumexp(sim, dim=1)          # log sum_{k!=i} exp(S_ik)

    # Numerator: each row i pairs with its other view (i <-> i+N).
    pos_idx = (torch.arange(N2, device=z.device) + N) % N2
    log_num = sim[torch.arange(N2), pos_idx]         # S_{i, j} = sim(z_i, z_j)/tau

    per_pair = -(log_num - log_denom)                # l_{i,j} = -log( exp(num) / denom )
    return per_pair.mean()                           # average over all 2N positive pairs

torch.manual_seed(0)
z = torch.randn(8, 128)                              # 4 images x 2 views, 128-d
print("NT-Xent loss:", round(nt_xent(z).item(), 4)) # ~2.08, near log(2N-1)=log 7 at chance

These contrastive objectives are one branch of self-supervision, the branch that learns by explicit comparison against negatives. They are not the only way to avoid labels. Section 25.3 develops two alternatives that need no negatives at all: DINO learns by self-distillation, matching a student network's output distribution to a momentum teacher's on different views, and MAE learns by masked reconstruction, predicting hidden image patches from visible ones. Both replace the push-against-negatives mechanism with a different anti-collapse device. Looking further ahead, the JEPA family of Chapter 36 predicts in latent space rather than pixel or probability space, and it does so against an EMA target encoder that is exactly MoCo's momentum encoder repurposed: the same $\theta_k \leftarrow m\theta_k + (1-m)\theta_q$ update, now providing a stable prediction target instead of consistent negatives. The momentum encoder introduced here for one reason, keeping a queue consistent, turns out to be a load-bearing component across self-supervised learning.
